Industrial & Commercial Roller Shutter Systems
Push-Up, Chain-Operated, Gear-Operated, Motorised, Perforated & Industrial Roller Shutter Systems
Titan Roller Shutter Doors supplies, installs, repairs, automates and services a wide range of industrial and commercial roller shutter door systems. The right operating system depends on the size and weight of the shutter, how frequently the opening is used, the level of security required and how the premises operate.
Start with the opening and how it works
Roller shutters are not all operated in the same way. A system that suits a small, occasionally used commercial opening may be unsuitable for a wide warehouse entrance that opens throughout the working day.
The correct specification should consider the opening dimensions, curtain weight, operating cycles, site traffic and whether people, vehicles or both use the access point. Security, visibility, ventilation, available electrical supply and compatible access control may also influence the choice.
Titan can assess a new opening or an existing roller shutter system and discuss a practical manual, motorised or replacement solution without assuming that one operating type suits every property.
Seven common system categories
These categories explain how common manual, electric and specialist shutters operate, where they are often useful and what should be considered before specifying or modifying the door.
Push-up roller shutters are raised and lowered directly by hand. They are generally considered for smaller, manageable openings where the curtain is correctly balanced and can move smoothly through the guides. They may suit selected commercial, storage and controlled-access openings, but the door dimensions, weight and condition must be assessed before manual push-up operation is chosen.

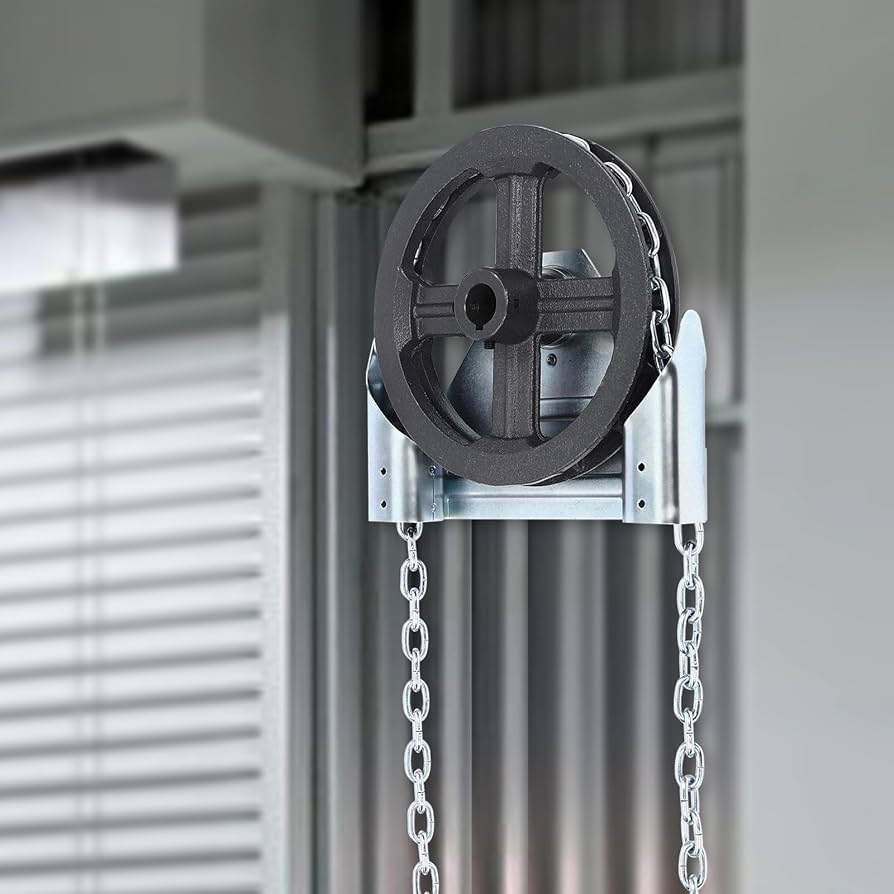

A hand-chain mechanism allows the user to move the shutter in a more controlled way than direct push-up operation. Chain-operated roller shutters are used in commercial and industrial settings where the size, weight or operating arrangement makes a chain drive appropriate. Suitability depends on the curtain, shaft, mechanism, frequency of use and safe access to the chain.

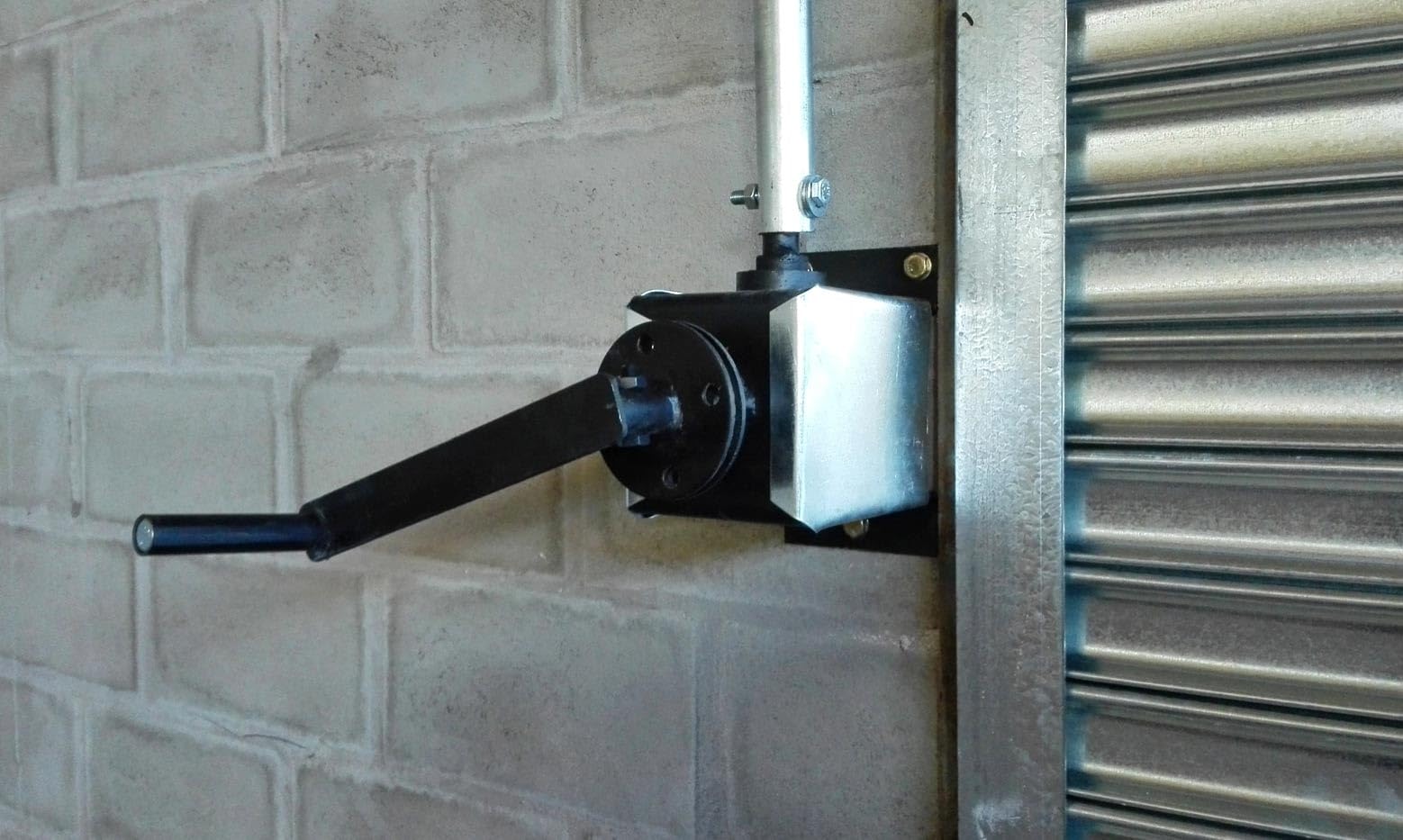

Gear-operated shutters use a geared manual mechanism to assist controlled opening and closing. They can be appropriate for certain larger or heavier industrial systems at factories, workshops, warehouses and similar premises. The gear ratio, door weight, operating effort and condition of the guides and lifting components all affect whether this arrangement is suitable.
Powered operation and control
Electric roller shutter doors use an operator, control equipment and limit settings to move the curtain. Motorisation can be useful where a shutter opens frequently, is difficult to operate manually or forms part of a controlled vehicle or staff access point.
The complete system may include switches, remotes, receivers, controls and compatible safety or access-control equipment. A motor fault can also be caused or worsened by mechanical resistance, so the door and operator should be assessed together.
Security with visibility and airflow
Perforated roller shutter curtains contain openings that allow a degree of visibility and airflow while the shutter is closed. They can be useful for selected retail, showroom and commercial security applications where the premises should remain visible after trading hours.
The curtain material, perforation pattern, operating system, opening size and required security level must be considered together. A perforated curtain is not automatically the right solution for every shopfront or exposed opening.

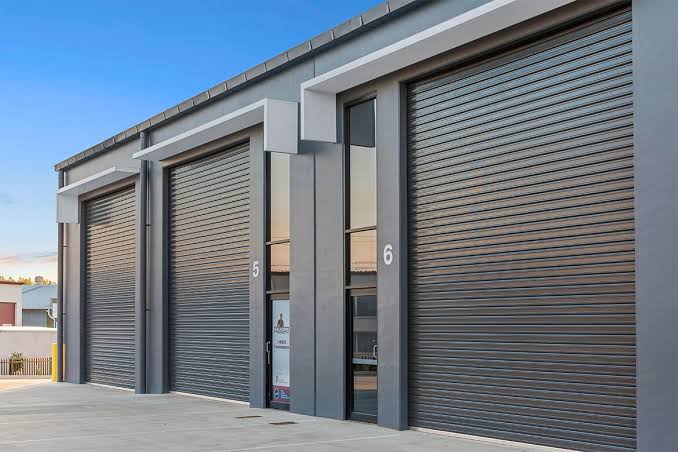

Industrial steel roller shutter systems are used at warehouses, factories, workshops, loading areas, logistics facilities and other demanding openings. Curtain construction, guides, bottom rail, shaft, barrel, lifting components and operating mechanism should be specified for the door size, traffic and security requirement. Planned servicing is especially important where the door operates frequently or is exposed to vehicles and site activity.

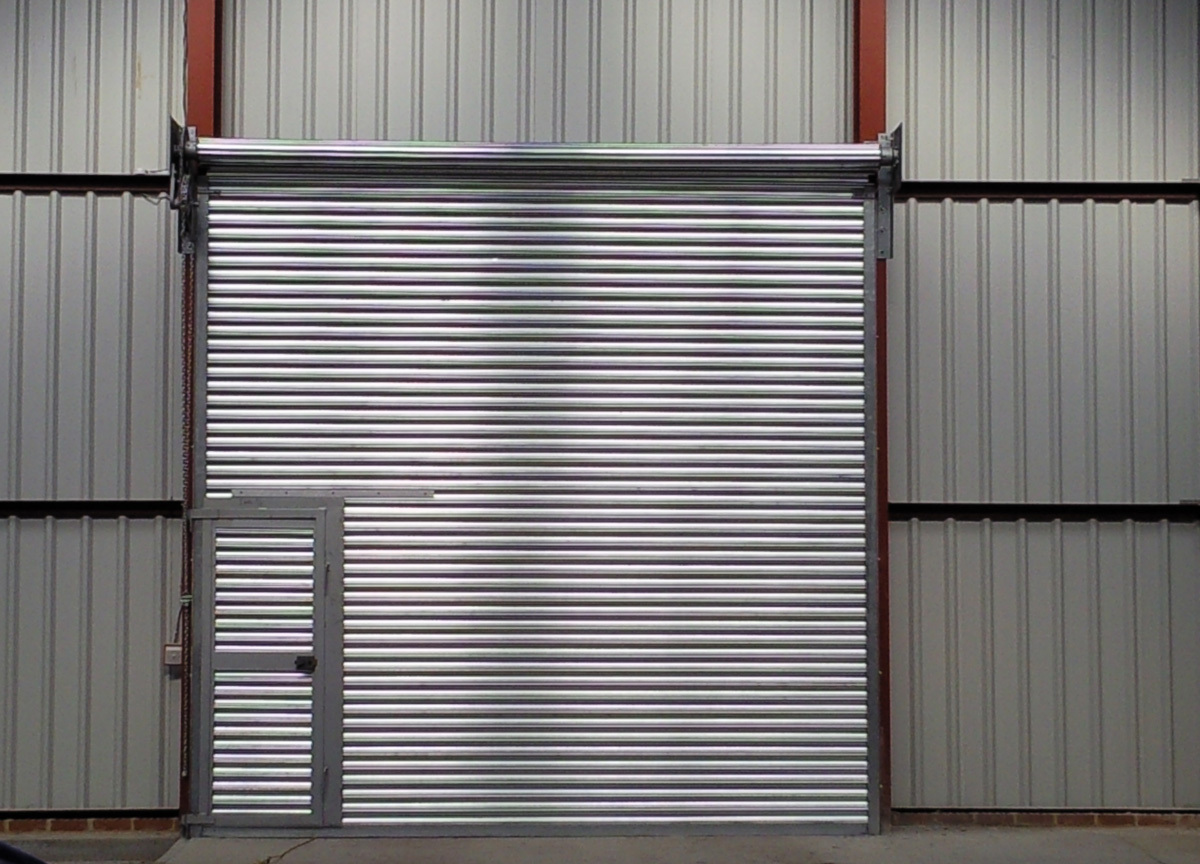

A wicket gate provides integrated pedestrian access within a suitable roller shutter installation. It can allow staff to enter without opening the complete shutter, which may be useful at selected warehouses, workshops and controlled-access points. Suitability depends on the shutter design, opening dimensions, threshold, locking requirements and safe operation of both the pedestrian door and main curtain.
Operating method comparison
No operating system is automatically better for every opening. The decision should balance door weight, size, daily operating cycles, user access, electrical supply, maintenance needs and the way the business uses the entrance.
Direct manual movement without a chain or electric operator. Correct balance and manageable curtain weight are essential.
Hand-chain control provides mechanical assistance and more controlled manual movement.
A geared manual mechanism assists movement on certain larger or heavier shutters.
An electric operator, limits and controls move the door and can support compatible remote or access systems.
Match the system to the premises
Industrial and commercial roller shutter doors protect openings while supporting the movement of staff, vehicles, deliveries and stock. The suitable curtain and operating method should reflect the environment. A warehouse loading door, a factory access point and a retail security shutter may require very different specifications even when they share the same basic roller-shutter principle.
Understand the complete door
Different roller shutter types use different combinations of curtain, lifting, drive and control components. A fault in one part does not automatically mean that the complete door requires replacement; connected components should be inspected before the repair scope is decided.
Curtain slats, perforated slats, end locks, guides or tracks, bottom rail, locking mechanisms, brackets and fasteners.
Barrel or drum, shaft, springs where applicable, end plates, bearings, shaft stubs and supporting hardware.
Hand chains, chain wheels, gears, gearboxes, crank handles, crown wheel and pinion arrangements where applicable.
Electric operators, brakes, limits, switches, remotes, receivers, contactors, control equipment and compatible safety devices.
Support throughout the door lifecycle
Titan provides installation, repair, motor, automation and maintenance services for appropriate industrial and commercial roller shutter systems.
Assessment and installation of manual, motorised, industrial and commercial roller shutter door systems.
View installation services →Fault finding for jammed doors, damaged curtains, guides, lifting components, operating gear and locks.
View repair services →Diagnosis of motor, limit, control, receiver, remote, switch and related electrical or mechanical-load faults.
View motor repair services →Assessment of suitable doors for motor installation, manual-to-electric conversion and operator upgrades.
View motor installation →Compatible remotes, receivers, controls, safety equipment and access-control integration for powered shutters.
View automation services →Inspection and maintenance of curtains, guides, lifting parts, drive systems, motors, limits and controls as applicable.
View maintenance services →Specification before price alone
Choosing purely by initial price can result in a door that is difficult to operate, unsuitable for the opening or poorly matched to the traffic. Titan can discuss the dimensions, curtain weight, usage cycles, security, manual accessibility, pedestrian access, visibility, ventilation, automation and maintenance requirements before a system is selected.
Regional installation and service support
Titan provides industrial and commercial roller shutter door services across Gauteng, Durban, Bloemfontein and surrounding service areas.
Choose one of the main regional pages below or contact Titan directly to discuss your location and service requirements.
Practical system questions
Useful answers about manual, motorised, perforated, industrial and pedestrian-access shutter systems.
Push-up roller shutters are opened and closed directly by hand, while chain-operated shutters use a hand-chain mechanism to assist movement. Push-up operation is generally more appropriate for smaller, manageable curtains, while chain operation can provide more controlled manual movement where the size or weight of the shutter makes direct lifting unsuitable.
Motorisation may be useful where a roller shutter is operated frequently, is large or difficult to operate manually, or needs to work with compatible remote controls or access-control equipment. The condition, balance, size and weight of the existing shutter should be assessed before a motor is selected.
Many manual roller shutter doors can potentially be motorised, but this depends on the condition and construction of the shutter, its size and weight, the shaft and operating mechanism, available electrical supply and how frequently the door will be used. The complete door should be assessed before conversion.
There is no single roller shutter type suitable for every warehouse. Door dimensions, traffic, operating frequency, security requirements and curtain weight can determine whether a chain-operated, gear-operated, motorised or other industrial roller shutter system is appropriate.
A perforated roller shutter uses a curtain with small openings that allow a degree of visibility and airflow while the shutter remains closed. These systems can be useful for selected retail, showroom and commercial openings where security and visibility are both important.
A wicket gate is a pedestrian access door integrated into a suitable roller shutter installation. It can allow staff to enter or leave without opening the complete shutter. Not every roller shutter is suitable for a wicket gate, so the door design and opening need to be assessed.
Whether you need a new roller shutter door, repairs to an existing system, motorisation, automation or servicing, contact Titan Roller Shutter Doors to discuss the opening and operating requirements.
